Description

with DC connectors 5.5 x 2.5 mm

Features
-Extends an existing mains connection cable or power supply unit by up to 3 m

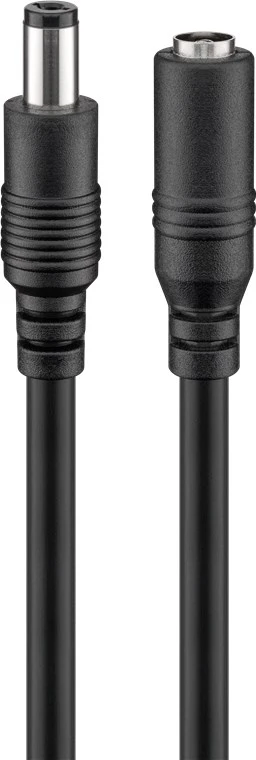

-Equipped with 1x DC plug (5.5 x 2.5 mm) and 1x DC socket (5.5 x 2.5 mm)
-Suitable for devices with 5-24 V (DC) and max. 5 A, e.g. LED light strips, routers such as the AVM Fritz!Box, electric toys, external hard drives and surveillance cameras
-Flexible DC cable with 5 mm diameter and plug housing with 9.5 mm diameter
-Bend protection on both sides prevents cable breakage
-Product is only suitable for hobbyist/DIY use

Specifications

Connections
Connection, type: DC male (5.50 x 2.50 mm)
Connection 2, type: DC female (5.50 x 2.50 mm)

Performance
max. performance: 120 W
max current capacity: 5 A

Device connections
Input, Voltage Range: 5 – 24 (DC) V

Cable
Cable sheath diameter (approx.): 5 mm
Inner conductor cross-section: 0.5 mm?
Cable length: 10 m
Inner conductor material: copper
Inner Conductor number: 2 pieces
AWG: 20

General
Color: black
Markings: CE, WEEE
Packaging type: Cable Tag

Dimensions / Weight
Weight: 120 g
